Precision Inspection Gauge Set for Wire Rope, Sheaves and Drums

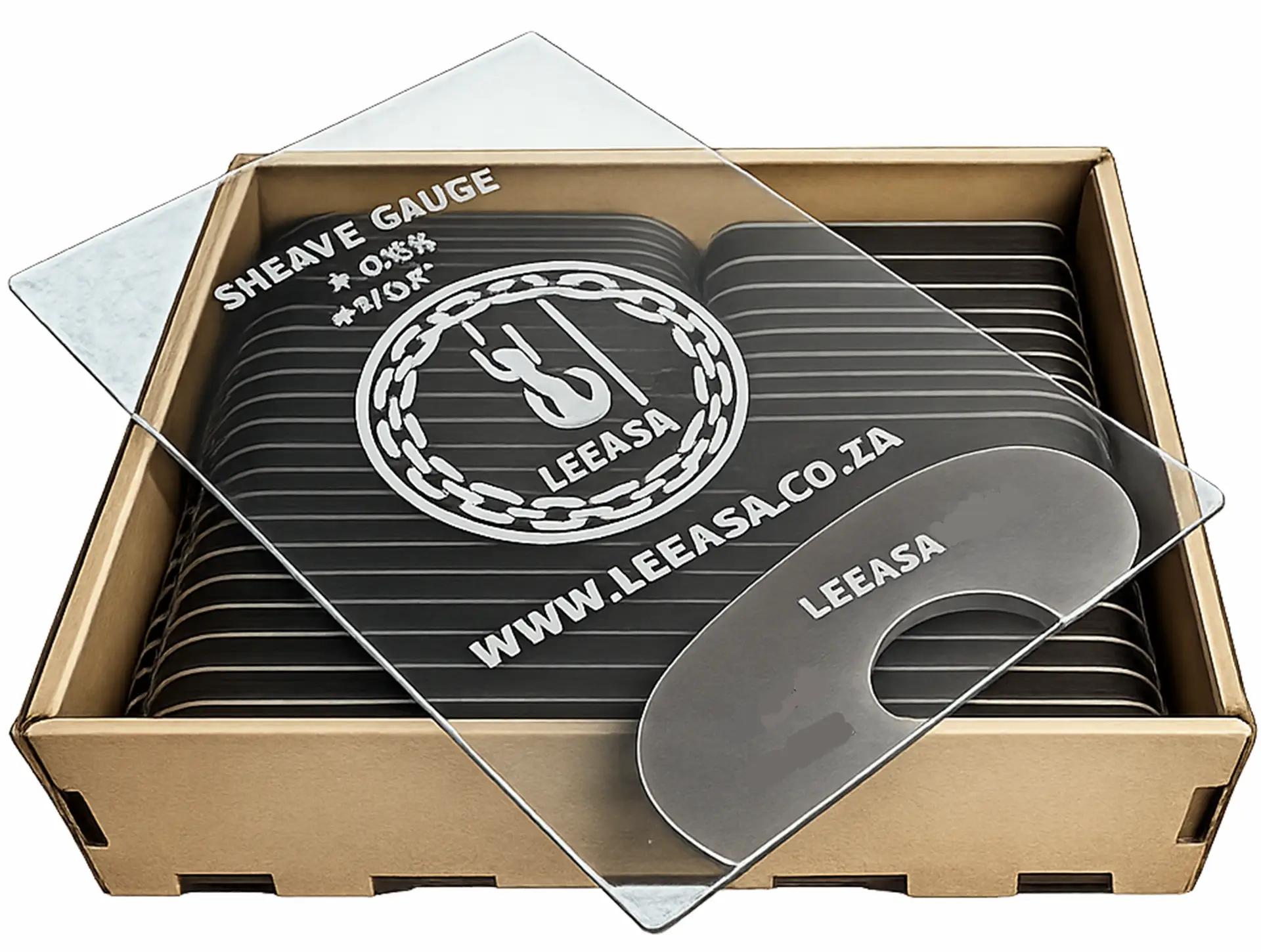

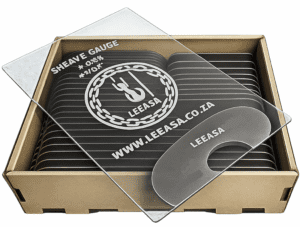

The LEEASA Sheave, Drum Groove & Rope Gauge Set has been specifically developed for lifting machinery inspectors, crane technicians, maintenance personnel and engineering professionals responsible for the inspection and condition assessment of wire rope systems.
This bespoke inspection kit provides a simple, accurate and reliable method of measuring wire rope diameters, sheave groove profiles and drum groove dimensions to ensure compliance with applicable standards, manufacturer requirements and industry best practices.
Key Features
- Measures wire rope diameters from 8 mm to 58 mm
- Measures both sheave groove and drum groove dimensions
- Integrated wire rope sizing functionality within the same gauge set
- Manufactured for rapid and repeatable field inspections
- Assists with identifying excessive groove wear and incorrect groove sizing
- Supports preventative maintenance and condition monitoring programmes
- Robust, portable and easy-to-use design
- Suitable for cranes, hoists, winches, mining equipment, offshore lifting equipment and other rope-operated machinery
Bespoke Storage System
Each gauge set is supplied in a custom-designed storage case featuring individual dedicated slots for every gauge size. This ensures:
- Quick identification and selection of the correct gauge
- Improved organisation and inventory control
- Protection against damage during transport and storage
- Professional presentation for inspection personnel and auditors
Inspection Tolerances
The gauge set incorporates groove wear assessment tolerances aligned with commonly accepted industry discard criteria:
- 4% Groove Wear Tolerance
- 7% Groove Wear Tolerance
These reference tolerances assist inspectors in determining when sheaves and drums may require monitoring, refurbishment or replacement due to wear that could negatively affect wire rope performance and service life.
Applications
The LEEASA Sheave, Drum Groove & Rope Gauge Set is suitable for:
- Overhead Cranes
- Mobile Cranes
- Tower Cranes
- Harbour and Ship-to-Shore Cranes
- Offshore Cranes
- Winches
- Hoists
- Mine Winders
- Rope-Operated Machinery
- General Lifting Equipment
Benefits
Accurate groove measurement is critical to maintaining wire rope integrity and extending service life. Incorrect groove dimensions can lead to accelerated rope wear, crushing, distortion, reduced rope life and increased maintenance costs.
The LEEASA Gauge Set enables inspectors to quickly verify rope and groove compatibility, identify excessive wear and make informed maintenance decisions before equipment reliability and safety are compromised.
Available Sizes: 8 mm – 58 mm
Functions: Wire Rope Measurement • Sheave Groove Measurement • Drum Groove Measurement
Supplied: Complete Bespoke Gauge Set with Custom Organised Storage Case
